Part no.: 08 3186 000 000
Raw cable, Contacts: 8 wires, unshielded, Standard, PUR, black, Signal: 2 x 2 x 1.0 mm² (AWG 18) + Power: 3 x 2.5 mm² + PE x 2.5 mm² (AWG 14), 100 m
PUR cable, series 769, Cable
General features
Moreless| Part no. | 08 3186 000 000 |
| Connector design | Raw cable |
| Cable length | 100 m |
| Version | Raw cable |
| Weight (g) | 16866 |
| Customs tariff number | 85444995 |
| Country of Origin | DE |
Electrical parameters
Moreless| EMC compliance | unshielded |
Material
Moreless| REACH SVHC |
None (No pollutants) |
| SCIP number | SCIP-number not available |
Cable data

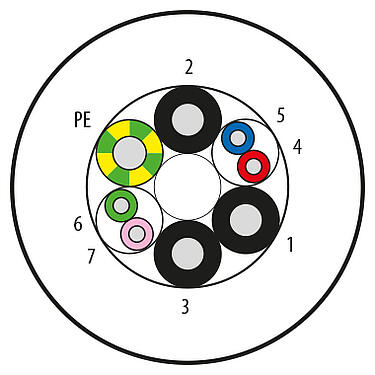

Moreless| Structure of the cable | |
| Cable type | Standard |
| Cable diameter | 12.3 mm |
| Cross section | Signal: 2 x 2 x 1.0 mm² (AWG 18) + Power: 3 x 2.5 mm² + PE x 2.5 mm² (AWG 14) |
| Sheath material | PUR |
| Single-lead insulation | PP |
| Single-lead structure | 2 x 0.75 mm² / 7 x 0.14 mm² |
| Cable color | black |
| Electrical properties | |
| Cable Insulation resistance | 400 Ω/Km |
| Operating voltage | 600 V |
| Cable test voltage | 4 kV |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 4 x Ø |
| Bending radius, moving cable | ≥ 7.5 x Ø |
| Thermal properties | |
| Temperature range cable in move from/to | -20 °C / 85 °C (+105 °C) |
| Temperature range cable fixed from/to | -40 °C / 85 °C (+105 °C) |
| Other features | |
| Halogen free | yes |
Classifications
Moreless| eCl@ss 11.1 | 27-06-03-11 |
| ETIM 9.0 | EC002638 |
