Part no.: 08 3094 000 000
Raw cable, Contacts: 6 wires, shielded, Standard, PUR, black, 6 x 0.25 mm², 100 m
PUR cable, series 769, Cable
General features
Moreless| Part no. | 08 3094 000 000 |
| Connector design | Raw cable |
| Cable length | 100 m |
| Version | Raw cable |
| Weight (g) | 4662.00 |
| Customs tariff number | 85444995 |
| Country of Origin | DE |
Electrical parameters
Moreless| EMC compliance | shielded |
Material
Moreless| REACH SVHC |
None (No pollutants) |
| SCIP number | SCIP-number not available |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-90 |
| ETIM 9.0 | EC002638 |
Cable data

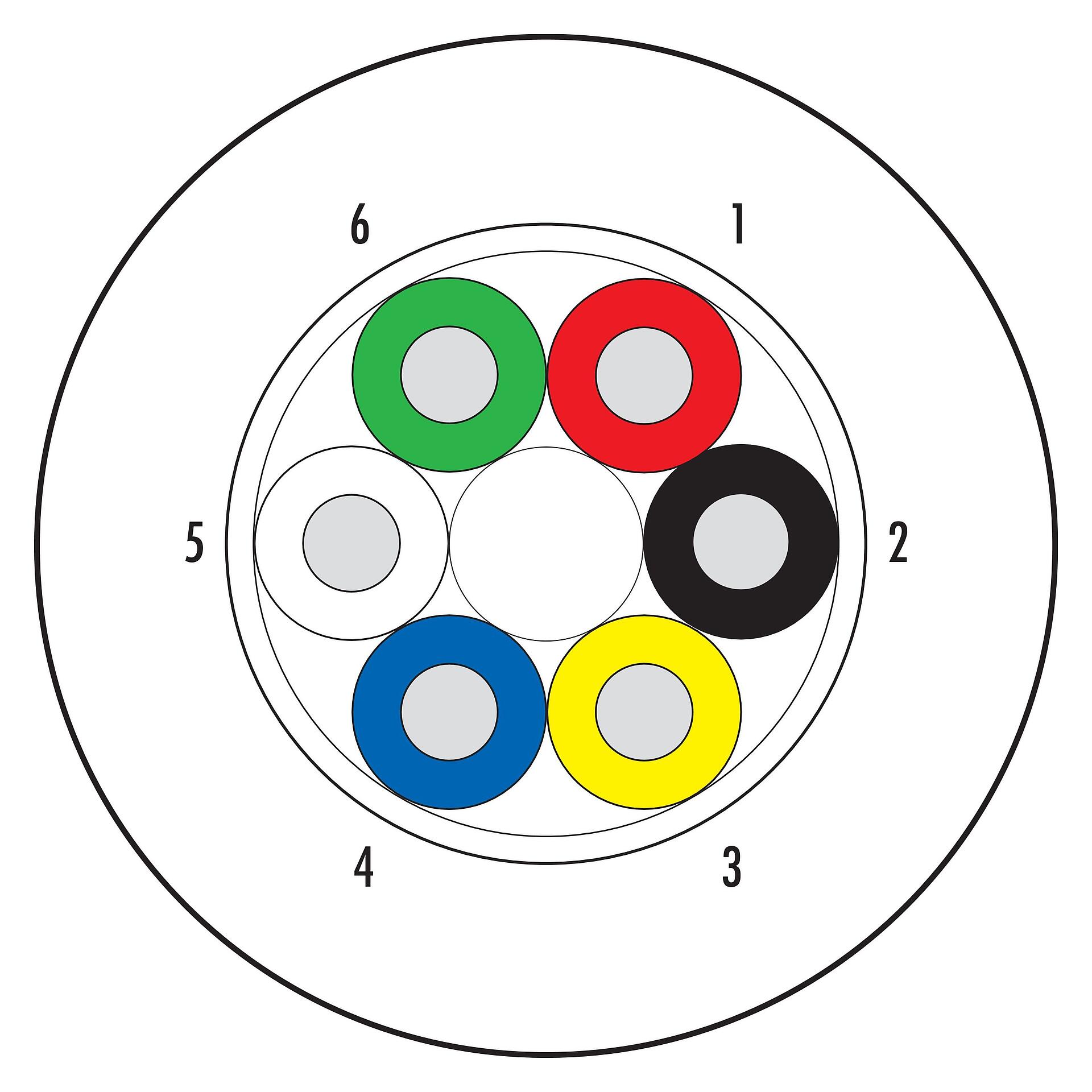

Moreless| Structure of the cable | |
| Cable type | Standard |
| Cable diameter | 5.3 mm |
| Cross section | 6 x 0.25 mm² |
| Sheath material | PUR |
| Single-lead insulation | PVC |
| Single-lead structure | 14 x 0.15 mm |
| Cable color | black |
| Electrical properties | |
| Operating voltage | 250 V effective |
| Cable test voltage | 2000 V effective |
| Conductor resistance | 75.5 Ω/Km (20°C) |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 7.5 x Ø |
| Bending radius, moving cable | ≥ 15 x Ø |
| Thermal properties | |
| Temperature range cable in move from/to | -5 °C / 70 °C |
| Temperature range cable fixed from/to | -20 °C / 70 °C |
| Other features | |
| Halogen free | no |
