Part no.: 08 3091 000 000

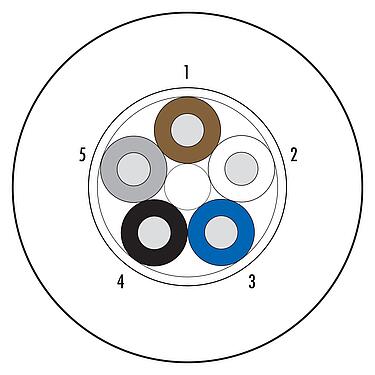

Raw cable, Contacts: 5 wires, shielded, Standard, 100 m
PVC cable, series 769, Cable
General features
Moreless| Part no. | 08 3091 000 000 |
| Connector design | Raw cable |
| Cable length | 100 m |
| Version | Raw cable |
| Weight (g) | 5083.00 |
| Customs tariff number | 85444995 |
| Country of Origin | DE |
Electrical parameters
Moreless| EMC compliance | shielded |
Material
Moreless| REACH SVHC |
None (No pollutants) |
| SCIP number | SCIP-number not available |
Cable data
Moreless| Structure of the cable | |
| Cable type | Standard |
| Electrical properties | |
| Conductor resistance | 75 Ω/Km (20°C) |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 5 x Ø |
| Bending radius, moving cable | ≥ 10 x Ø |
| Bending cycles | > 2 million |
| Other features | |
| Halogen free | no |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-90 |
| ETIM 9.0 | EC002638 |
