Part no.: 08 0038 000 000
Raw cable, Contacts: 4 wires, shielded, Standard, PUR, green, 4 x AWG 22, 100 m
PUR cable, series 876, Cable
General features
Moreless| Part no. | 08 0038 000 000 |
| Connector design | Raw cable |
| Cable length | 100 m |
| Version | Raw cable |
| Weight (g) | 6439.00 |
| Customs tariff number | 85444995 |
| Country of Origin | DE |
Electrical parameters
Moreless| EMC compliance | shielded |
Material
Moreless| REACH SVHC |
None (No pollutants) |
| SCIP number | 13f73e8a-dda0-426a-9e78-e56320ee67ba |
Cable data

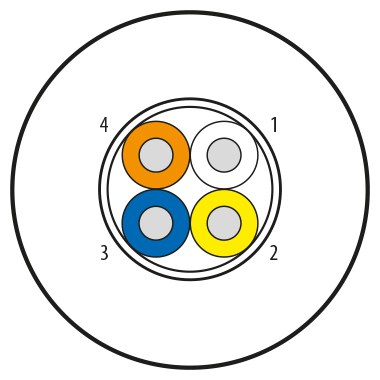

Moreless| Structure of the cable | |
| Cable type | Standard |
| Cable diameter | 6.7 mm |
| Cross section | 4 x AWG 22 |
| Sheath material | PUR |
| Single-lead insulation | Polypropylen |
| Single-lead structure | 7 wire AWG 22 |
| Cable color | green |
| Electrical properties | |
| Cable Insulation resistance | > 500 Ω/Km (20 °C) |
| Operating voltage | 300 V AC, use according to UL Style Page 20549 or 21198 (not for heavy current purposes) |
| Conductor resistance | 55 Ω/Km (20°C) |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 5 x Ø |
| Bending radius, moving cable | ≥ 15 x Ø |
| Bending cycles | > 2 million |
| Permitted acceleration | max. 2 m/s² |
| Travel distance, horizontal | max. 5 m |
| Travel distance, vertical | max. 5 m |
| Travel speed | 200 m/min |
| Thermal properties | |
| Temperature range cable in move from/to | -20 °C / 60 °C |
| Temperature range cable fixed from/to | -40 °C / 80 °C |
| Other features | |
| Halogen free | yes |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-90 |
| ETIM 9.0 | EC002638 |
