  2. Power connectors
  3. RD30 Power
  4. RD30 Female panel mount connector, Contacts: 24, unshielded, solder, IP65
Part no.: 99 0740 00 24

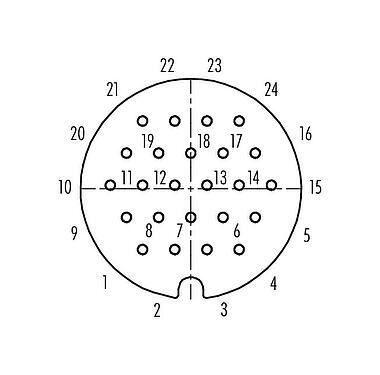

RD30 Female panel mount connector, Contacts: 24, unshielded, solder, IP65

RD30, series 694, Power Connectors
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 99 0740 00 24
Connector design Female panel mount connector
Version Connector socket straight
Connector locking system screw
Termination solder
Degree of protection IP65
Cross-sectional area max. 0.25 mm² / AWG 24
Temperature range from/to -40 °C / 100 °C
Mechanical operation > 500 Mating cycles
Weight (g) 31.78
Customs tariff number 85369010
Country of Origin DE
Rated voltage 125 V
Rated impulse voltage 2500 V
Rated current 3,0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 3
Overvoltage category III
Insulating material group III
EMC compliance unshielded
Housing material PA
Contact body material PA (UL94 HB)
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number b67caa1b-f308-4c1a-ae69-58040ee2a683
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  7. To lock the cable connector to the device connector, we recommend tightening the threaded ring to 1 Nm. A suitable torque wrench is available as an accessory (order no. 07 0082 000).
