Bayonet Female cable connector, Contacts: 4+PE, unshielded, screw clamp, IP67, UL 2238 (in preparation)

Illustration 99 6494 000 05 - Bayonet Female cable connector, Contacts: 4+PE, unshielded, screw clamp, IP67, UL 2238 (in preparation) — Illustration

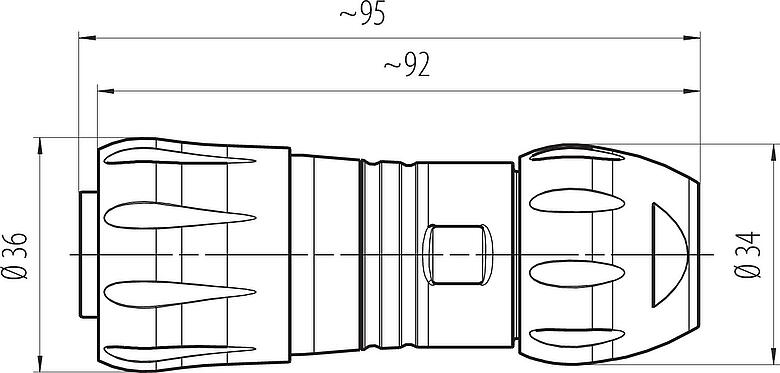

Scale drawing 99 6494 000 05 - Bayonet Female cable connector, Contacts: 4+PE, unshielded, screw clamp, IP67, UL 2238 (in preparation) — Scale drawing

Assembly instructions 99 6494 000 05 - Bayonet Female cable connector, Contacts: 4+PE, unshielded, screw clamp, IP67, UL 2238 (in preparation) — Assembly instructions

Contact arrangement (Plug-in side) 99 6494 000 05 - Bayonet Female cable connector, Contacts: 4+PE, unshielded, screw clamp, IP67, UL 2238 (in preparation) — Contact arrangement (Plug-in side)

Part no.	99 6494 000 05
Connector design	Female cable connector
Version	Field-wireables
Connector locking system	Bayonet
Termination	screw clamp
Degree of protection	IP67 IP68/IP69K plugged
Connection cross-section	2.50-4.00 mm²
Temperature range from/to	-40 °C / 100 °C
Mechanical operation	> 1000 Mating cycles
Weight (g)	0.00
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	600 V
Rated impulse voltage	6000 V
Rated current	32 A (35 A UL; 22 A CSA)
Insulation resistance	> 10⁸ Ω
Pollution degree	3
Overvoltage category	III
Insulating material group	I
EMC compliance	unshielded

Housing material	PA (UL94 V-0)
Contact body material	PA (UL94 V-0)
Contact material	CuZn (brass)
Contact plating	Ag (silver)
REACH SVHC	None (No pollutants)
SCIP number	SCIP-number not available

Approvals	UL 2238 (in preparation)

Low Voltage Directive	2014/35/EU (EN 60529:1991 \| 2014/35/EU;EN 60204-1:2018)

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
