  4. Snap-In Female cable connector, Contacts: 3, unshielded, moulded on the cable, IP67, VDE, PUR, black, 3 x 0.75 mm², 2 m
Part no.: 79 9150 120 03

Snap-In Female cable connector, Contacts: 3, unshielded, moulded on the cable, IP67, VDE, PUR, black, 3 x 0.75 mm², 2 m

Snap-In IP67, series 720, Miniature Connectors
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 79 9150 120 03
Connector design Female cable connector
Cable length 2 m (Standard 2 m and 5 m. Other lengths are available on request.)
Connector locking system snap-in
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area 0.75 mm²
Temperature range from/to -25 °C / 70 °C
Mechanical operation > 500 Mating cycles
Weight (g) 145.00
Customs tariff number 85444290
Country of Origin DE
Rated voltage 250 V
Rated impulse voltage 2500 V
Rated current 7.0 A
Insulation resistance > 1010 Ω
Pollution degree 2
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Voltage 2950 V DC
Housing material PUR
Contact body material PA66 (UL94 V0)
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 0d97c54f-efc8-4f36-8f67-2f23601ba625
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002638
Cable data
Moreless

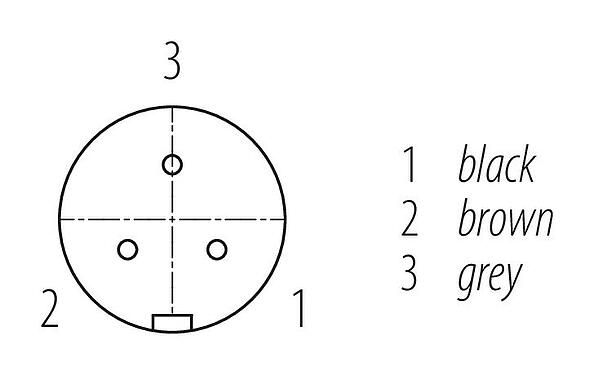

Structure of the cable
Cable diameter 6.8 mm
Cross section 3 x 0.75 mm²
Sheath material PUR
Single-lead insulation EPK
Single-lead structure 24 x 0.20 mm
Cable color black
Electrical properties
Conductor resistance 26.7 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable ≥ 5 x Ø
Bending radius, moving cable ≥ 10 x Ø
Thermal properties
Temperature range cable fixed from/to -40 °C / 90 °C
Other features
Halogen free yes
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  7. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
