Part no.: 99 5122 760 06

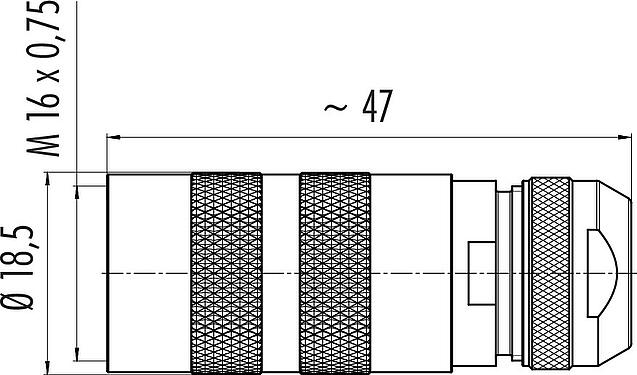

M16 IP67 Female cable connector, Contacts: 6 (06-a), 4.1-7.8 mm, shieldable, crimping, IP67, Short version
M16, series 423, Miniature Connectors
|Part no.||99 5122 760 06|
|Connector design||Female cable connector|
|Version||Connector socket straight|
|Connector locking system||screw|
|Degree of protection||IP67|
|Cross-sectional area||0.14-1.00 mm² / AWG 26-18|
|Cable outlet||4.1-7.8 mm|
|Temperature range from/to||-40 °C / 100 °C|
|Mechanical operation||> 500 Mating cycles|
|Additional information||Short version|
|Customs tariff number||85369010|
|Rated voltage||150 V|
|Rated impulse voltage||1500 V|
|Rated current (40 °C)||6.0 A|
|Insulating material group||III|
|Shield connection||cable clamp|
|Housing material||CuZn (Brass nickel plated)|
|Contact body material||PBT|
|Contact plating||depending on crimp contact (accessory)|
|Locking material||CuZn (brass)|
