  2. Miniature connectors
  3. M16 IP40

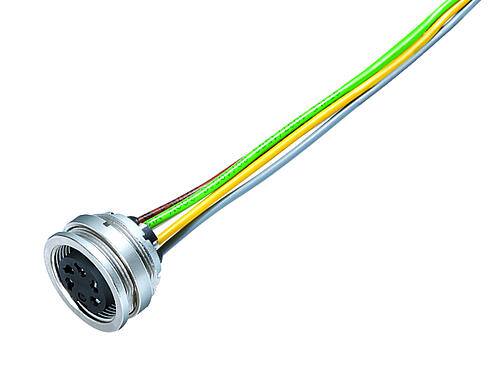

  4. M16 Female panel mount connector, Contacts: 8 (08-a), unshielded, single wires, IP40
Part no.: 09 0474 702 08

M16 Female panel mount connector, Contacts: 8 (08-a), unshielded, single wires, IP40

M16 IP40, series 680, Miniature Connectors
Compare product
Downloads
General features
Moreless
Part no. 09 0474 702 08
Connector design Female panel mount connector
Type standard DIN EN 61076-2-106
Version Connector socket straight
Connector locking system screw
Termination single wires
Degree of protection IP40
Cross-sectional area AWG 22
Temperature range from/to -30 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 18.86
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current 5.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group II
EMC compliance unshielded
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Ag (silver)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number d854748f-b8b2-47ca-8b84-17893e1dda90
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
