  2. Miniature connectors
  3. M16 IP40
  4. M16 Male panel mount connector, Contacts: 8 (08-a), unshielded, crimping (Crimp contacts must be ordered separately), IP40
Part no.: 09 0473 700 08

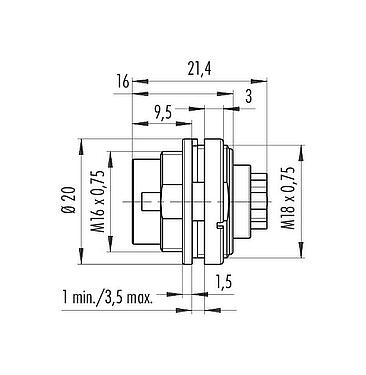

M16 Male panel mount connector, Contacts: 8 (08-a), unshielded, crimping (Crimp contacts must be ordered separately), IP40

M16 IP40, series 680, Miniature Connectors
Compare product
Downloads
General features
Moreless
Part no. 09 0473 700 08
Connector design Male panel mount connector
Type standard DIN EN 61076-2-106
Version Connector pin straight
Connector locking system screw
Termination crimping (Crimp contacts must be ordered separately)
Degree of protection IP40
Cross-sectional area click here for more info
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 10.16
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current 5.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Contact body material PBT (UL94 V-0)
Contact material depending on crimp contact (accessory)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number c84942fe-76b4-43e3-980c-2940510cecc7
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
