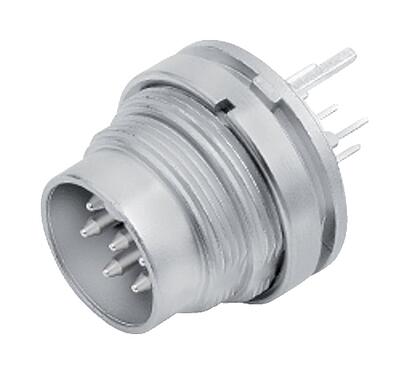

  4. M16 Male panel mount connector, Contacts: 8 (08-a), shieldable, THT, IP40, front fastened
Part no.: 09 0473 290 08

M16 Male panel mount connector, Contacts: 8 (08-a), shieldable, THT, IP40, front fastened

M16 IP40, series 680, Miniature Connectors
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 09 0473 290 08
Connector design Male panel mount connector
Type standard DIN EN 61076-2-106
Version Connector pin straight
Connector locking system screw
Termination THT
Degree of protection IP40
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 15.00
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current 5.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance shieldable
Shield connection Shield pin
Contact body material PBT (UL94 V-0)
Contact material CuZn (brass)
Contact plating Ag (silver)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number d774e97d-ee3c-418b-8aaf-07fb62e09b86
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
