  4. M16 Female panel mount connector, Contacts: 19, unshielded, THT, IP40, front fastened
Part no.: 09 0336 90 19

M16 Female panel mount connector, Contacts: 19, unshielded, THT, IP40, front fastened

M16 IP40, series 680, Miniature Connectors

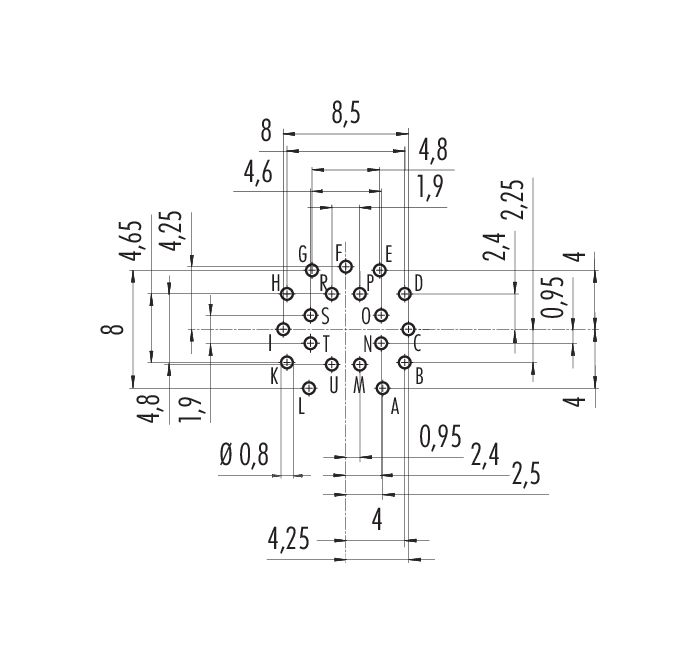

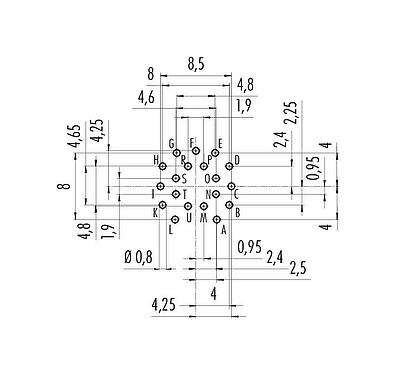

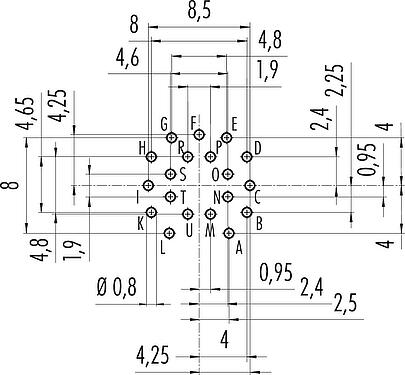

Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 09 0336 90 19
Connector design Female panel mount connector
Type standard DIN EN 61076-2-106
Version Connector socket straight
Connector locking system screw
Termination THT
Degree of protection IP40
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 9.26
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current 3,0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Housing material Zinc die-cast nickel-plated
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 52394006-0cef-408d-8e15-1b8526526e0f
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Security notices
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
