  4. M16 Female panel mount connector, Contacts: 19 (19-a), unshielded, solder, IP40
Part no.: 09 0336 00 19

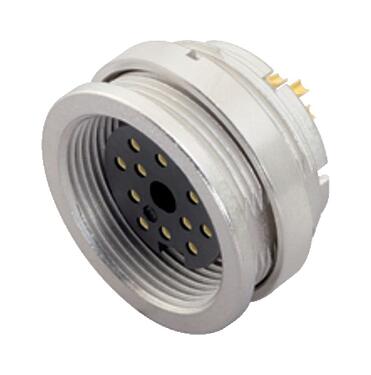

M16 Female panel mount connector, Contacts: 19 (19-a), unshielded, solder, IP40

M16 IP40, series 680, Miniature Connectors
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 09 0336 00 19
Connector design Female panel mount connector
Type standard DIN EN 61076-2-106
Version Connector socket straight
Connector locking system screw
Termination solder
Degree of protection IP40
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 9.52
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current 3,0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Housing material Zinc die-cast nickel-plated
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 2d638e4b-7b88-4b04-96f1-109855780ec2
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
