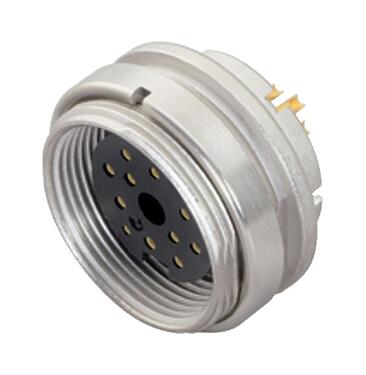

  4. M16 Female panel mount connector, Contacts: 14 (14-b), unshielded, solder, IP40, front fastened
Part no.: 09 0054 80 14

M16 Female panel mount connector, Contacts: 14 (14-b), unshielded, solder, IP40, front fastened

M16 IP40, series 680, Miniature Connectors
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 09 0054 80 14
Connector design Female panel mount connector
Type standard DIN EN 61076-2-106
Version Connector socket straight
Connector locking system screw
Termination solder
Degree of protection IP40
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 8.98
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current 3,0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Housing material Zinc die-cast nickel-plated
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 616d6622-c39f-493c-9c27-d82971132bec
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
