  2. Automation technology - Sensors and actuators
  3. M12-A

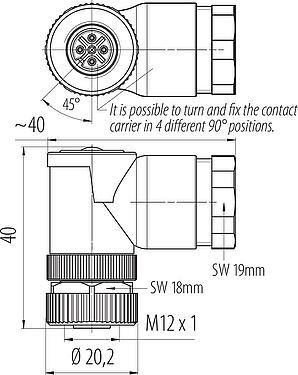

  4. M12 Male duo connector - female angled connector, Contacts: 4, 2x cable Ø Ø 2.1-3.0 mm or Ø 4.0-5.0 mm, unshielded, screw clamp, IP67
Part no.: 99 0430 286 04

M12 Male duo connector - female angled connector, Contacts: 4, 2x cable Ø Ø 2.1-3.0 mm or Ø 4.0-5.0 mm, unshielded, screw clamp, IP67

M12-A, series 713, Automation Technology - Sensors and Actuators
Compare product
Downloads
General features
Moreless
Part no. 99 0430 286 04
Connector design Male duo connector - female angled connector
Type standard DIN EN 61076-2-101
Version Field-wireables
Connector locking system screw
Termination screw clamp
Degree of protection IP67
Cross-sectional area max. 0.75 mm² / AWG 18
Cable outlet 2x cable Ø Ø 2.1-3.0 mm or Ø 4.0-5.0 mm
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 50 Mating cycles
Weight (g) 29.56
Customs tariff number 85369010
Country of Origin DE
Rated voltage 250 V
Rated impulse voltage 2500 V
Rated current 4.0 A
Pollution degree 3
Overvoltage category II
Insulating material group III
EMC compliance unshielded
Contact body material PA
Contact material CuZn (brass)
Contact plating CuSnZn (Optalloy)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 90fdc578-b204-463d-8f5e-fde07de75a26
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  7. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
