Part no.: 86 0531 1121 00005

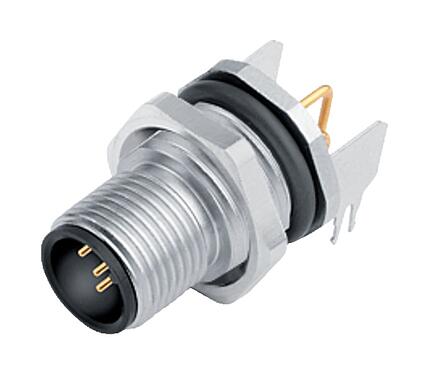

M12 Male panel mount connector, Contacts: 5, shieldable, THT, IP68, UL, PG 9, front fastened
M12-A, series 763, Automation Technology - Sensors and Actuators
86 0531 1121 00005
Alternative part no.: 09 3441 605 05
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.More

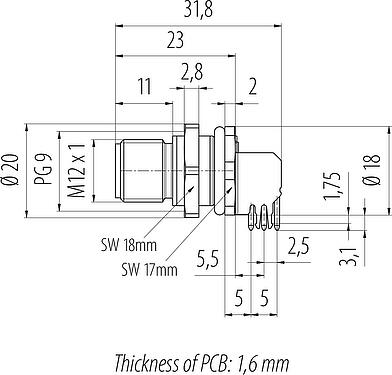

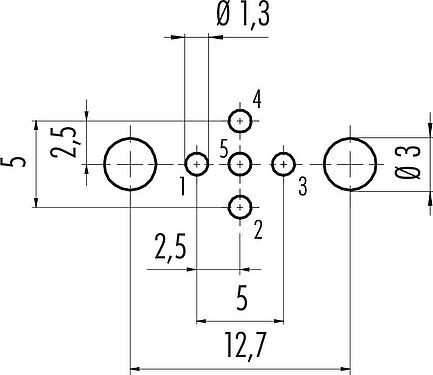

|Connector design||Male panel mount connector|
|Type standard||DIN EN 61076-2-101|
|Version||Connector pin angled|
|Connector locking system||screw|
|Degree of protection||IP68|
|Temperature range from/to||-40 °C / 85 °C|
|Mechanical operation||> 100 Mating cycles|
|Customs tariff number||85369010|
|Country of Origin||DE|
|Rated voltage||60 V|
|Rated impulse voltage||1500 V|
|Rated current||4 A (3 A UL)|
|Insulation resistance||> 10⁸ Ω|
|Insulating material group||III|
|Shield connection||Shielding plate|
|Contact body material||PA black|
|Contact material||CuZn (brass)|
|Contact plating||Au (gold)|
CAS 7439-92-1 (Lead)|
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
