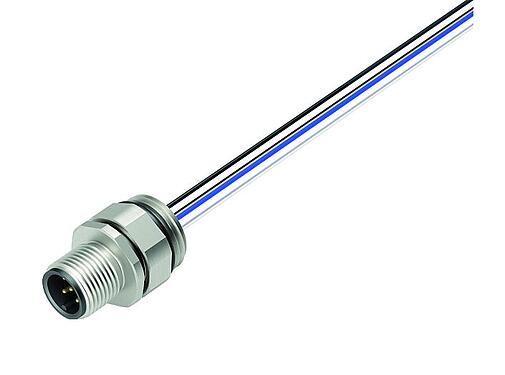

  4. M12 Male panel mount connector, Contacts: 5, unshielded, single wires, IP68, UL, PG 9, stainless steel
Part no.: 76 2731 0111 00005-0200

M12 Male panel mount connector, Contacts: 5, unshielded, single wires, IP68, UL, PG 9, stainless steel

M12-A, series 763, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
General features
Part no. 76 2731 0111 00005-0200
Alternative part no.: 09 3441 678 05
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
Connector design Male panel mount connector
Type standard DIN EN 61076-2-101
Wire length 0.2 m (Standard 0.2 m. Other lengths are available on request).
Version Connector pin straight
Connector locking system screw
Termination single wires
Degree of protection IP68
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Additional information stainless steel
Weight (g) 19.29
Customs tariff number 85369010
Rated voltage 60 V
Rated impulse voltage 1500 V
Rated current 4.0 A
Insulation resistance > 10⁸ Ω
Pollution degree 3
Overvoltage category II
Insulating material group III
EMC compliance unshielded
Housing material Stainless steel
Contact body material PA black
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 77ef58d8-69b8-446e-8c21-87e4724bef5d
ETIM 9.0 EC003570
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  4. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
