  4. M12 Male panel mount connector, Contacts: 4, unshielded, single wires, IP68, UL, M16x1.5
Part no.: 76 0231 0011 00404-0200

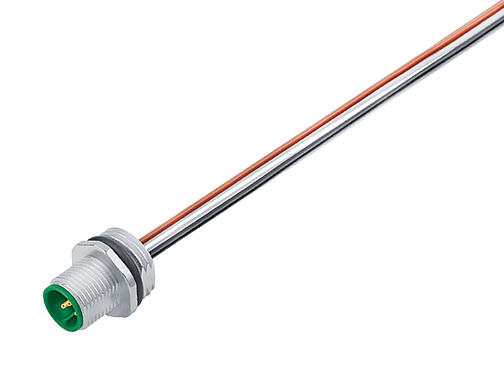

M12 Male panel mount connector, Contacts: 4, unshielded, single wires, IP68, UL, M16x1.5

M12-A, series 763, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 76 0231 0011 00404-0200
Connector design Male panel mount connector
Type standard DIN EN 61076-2-101
Wire length 0.2 m (Standard 0.2 m. Other lengths are available on request).
Version Connector pin straight
Connector locking system screw
Termination single wires
Degree of protection IP68
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 12.00
Customs tariff number 85369010
Rated voltage 250 V
Rated impulse voltage 2500 V
Rated current 4 A (3 A UL)
Insulation resistance > 108 Ω
Pollution degree 3
Overvoltage category II
Insulating material group III
EMC compliance unshielded

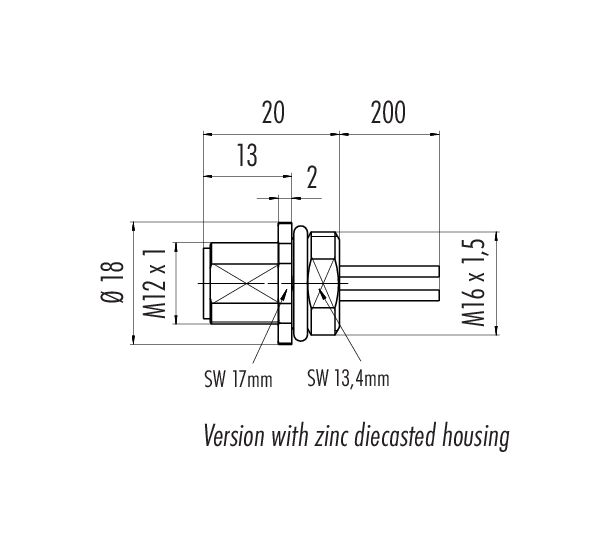

Housing material Zinc die-cast nickel-plated
Contact body material PA green
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 0c10385f-9bc0-4b1e-a602-bef1dfbb4e3d
eCl@ss 11.1 27-44-01-03
ETIM 9.0 EC003570
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  7. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
  8. The user must take appropriate safety precautions to ensure that the connector cannot be accidentally disconnected. In addition, the user must ensure that the cable is suitably secured.
