Part no.: 76 0231 0011 00205-0200

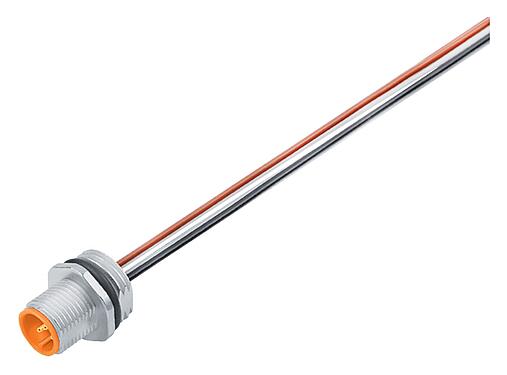

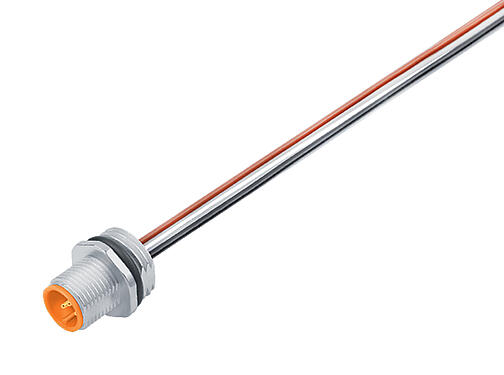

M12 Male panel mount connector, Contacts: 5, unshielded, single wires, IP68, UL, M16x1.5
M12-A, series 763, Automation Technology - Sensors and Actuators
|Part no.||76 0231 0011 00205-0200|
|Connector design||Male panel mount connector|
|Type standard||DIN EN 61076-2-101|
|Wire length||0.2 m (Standard 0.2 m. Other lengths are available on request).|
|Version||Connector pin straight|
|Connector locking system||screw|
|Degree of protection||IP68|
|Cross-sectional area||0.25 mm² / AWG 24|
|Temperature range from/to||-40 °C / 85 °C|
|Mechanical operation||> 100 Mating cycles|
|Customs tariff number||85369010|
|Rated voltage||60 V|
|Rated impulse voltage||1500 V|
|Rated current||4 A (3 A UL)|
|Insulation resistance||> 10⁸ Ω|
|Insulating material group||III|
|Housing material||Zinc die-cast nickel-plated|
|Contact body material||PA orange|
|Contact material||CuZn (brass)|
|Contact plating||Au (gold)|
CAS 7439-92-1 (Lead)|
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
