  4. 7/8" Female panel mount connector, Contacts: 4, unshielded, single wires, IP68, UL, VDE, PG 13.5
Part no.: 09 2448 300 04

7/8" Female panel mount connector, Contacts: 4, unshielded, single wires, IP68, UL, VDE, PG 13.5

7/8", series 820, Automation Technology - Voltage and Power Supply
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 09 2448 300 04
Connector design Female panel mount connector
Version Connector socket straight
Connector locking system screw
Termination single wires
Degree of protection IP68
Cross-sectional area 0.75 mm² / AWG 18
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 41.25
Customs tariff number 85369010
Country of Origin DE
Rated voltage 300 V (600 V UL)
Rated impulse voltage 4000 V
Rated current 7.0 A
Pollution degree 3
Overvoltage category III
Insulating material group I
EMC compliance unshielded
Contact body material PUR
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 7d14d7af-a9fe-4bb7-9af4-e695b7621e9e
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569

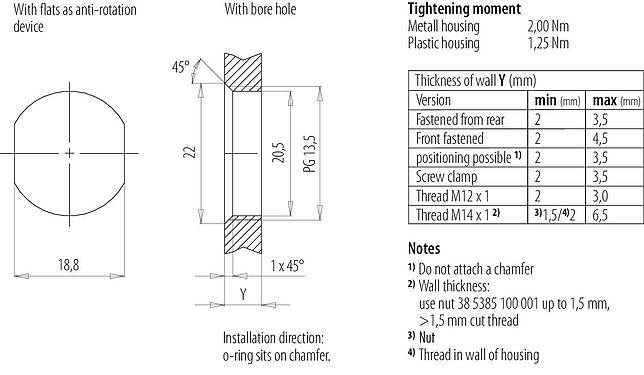

Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  7. To lock the cable connector to the device connector, we recommend tightening the threaded ring to 1.5 Nm. A suitable torque wrench is available as an accessory (order no. 07 0082 000).
