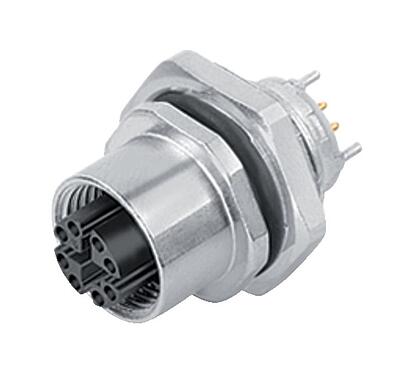

  4. M12 Female panel mount connector, Contacts: 8, shieldable, THT, IP67, UL, M16x1.5
Part no.: 09 3782 95 08

M12 Female panel mount connector, Contacts: 8, shieldable, THT, IP67, UL, M16x1.5

M12-X, series 876, Automation Technology - Data Transmission
Compare product
General features
Part no. 09 3782 95 08
Connector design Female panel mount connector
Type standard DIN EN 61076-2-109
Version Connector socket straight
Connector locking system screw
Termination THT
Degree of protection IP67
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 14.42
Customs tariff number 85369010
Country of Origin DE
Rated voltage 50 V (AC) / 60 V (DC)
Rated current 0.5 A
Insulation resistance > 10⁸ Ω
Pollution degree 3
Transmission rate CAT 6A
Overvoltage category II
Insulating material group III
EMC compliance shieldable
Shield connection Shield pin
Housing material Zinc die-cast nickel-plated
Contact body material PA
Contact material CuSn (bronze)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number e0966dc0-2cf9-431c-a20a-4c2bd0e817b4
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Security notices
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  3. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
