Part no.: 77 8406 0000 30709-0185

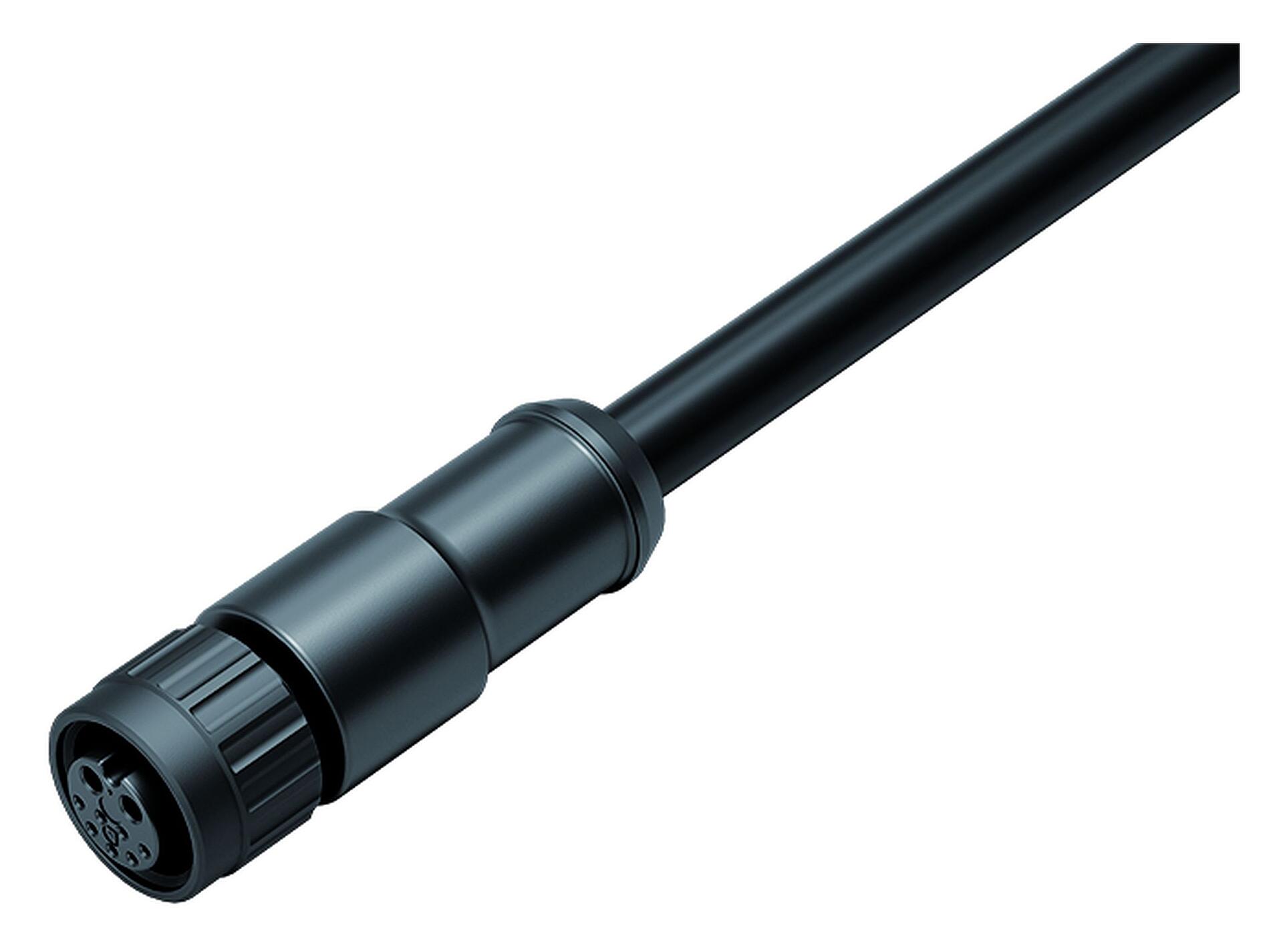

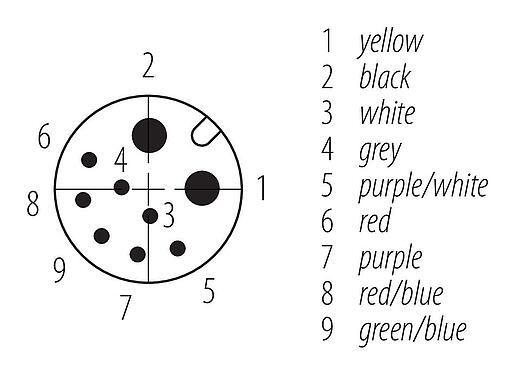

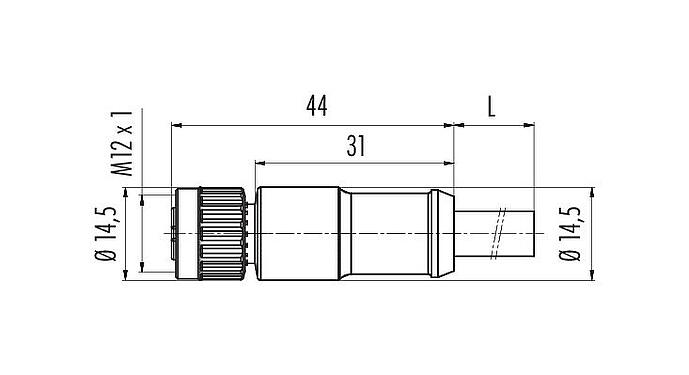

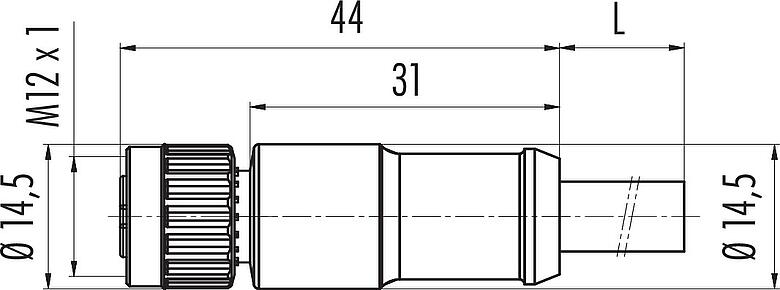

M12 Female cable connector, Contacts: 2+7, moulded on the cable, IP67, PUR, black, Power: 2 x 0.75 (AWG 18), Signal: 7 x 0.14 (AWG 26), 1.85 m
M12-Hybrid, series 767, Automation Technology - Data Transmission
General features
Moreless| Part no. | 77 8406 0000 30709-0185 |
| Connector design | Female cable connector |
| Cable length | 1.85 m (Other lengths are available on request.) |
| Version | Connector socket straight |
| Connector locking system | screw |
| Termination | moulded on the cable |
| Degree of protection | IP67 |
| Cross-sectional area | Power: 0.75–1.5 mm², Signal: 0.14–0.25 mm² / Power: AWG 20-18, Signal: AWG 26-24 |
| Temperature range from/to | -25 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 129.00 |
| Customs tariff number | 85444290 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | Power: 63 V, Signal: 12.5 V |
| Rated impulse voltage | Power: 800 V, Signal: 500 V |
| Rated current | 12 A Power / 0,5 A Signal |
| Pollution degree | 2 |
| Overvoltage category | II |
| Insulating material group | I |
Material
Moreless| Housing material | PUR |
| Contact body material | TPU |
| Contact material | CuSn (bronze) |
| Contact plating | Au (gold) |
| Locking material | PA |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 3144a082-1ade-4507-85a6-84a879637a68 |
Classifications
Moreless| ETIM 9.0 | EC002638 |
Cable data
Moreless| Structure of the cable | |
| Cable diameter | 7.0 mm |
| Cross section | Power: 2 x 0.75 (AWG 18), Signal: 7 x 0.14 (AWG 26) |
| Sheath material | PUR |
| Single-lead insulation | PP |
| Single-lead structure | 2 x 0.75 mm² / 7 x 0.14 mm² |
| Cable color | black |
| Mechanical properties | |
| Bending radius, fixed cable | 3 x Ø |
| Bending radius, moving cable | 9 x Ø |
| Thermal properties | |
| Temperature range cable in move from/to | -20 °C / 60 °C |
| Temperature range cable fixed from/to | -40 °C / 85 °C |
Security notices
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
