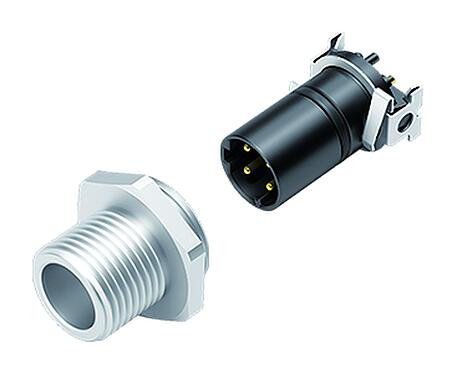

  4. M12 Male panel mount connector, Contacts: 4, shieldable, SMT, IP67
Part no.: 99 3731 401 04

M12 Male panel mount connector, Contacts: 4, shieldable, SMT, IP67

M12-D, series 876, Automation Technology - Data Transmission
Compare product
General features
Part no. 99 3731 401 04
Connector design Male panel mount connector
Type standard DIN EN 61076-2-101
Version Connector pin straight
Connector locking system screw
Termination SMT
Degree of protection IP67
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Installation height 9
Weight (g) 9.21
Customs tariff number 85369010
Country of Origin DE
Rated voltage 250 V
Rated impulse voltage 2500 V
Rated current 4.0 A
Insulation resistance > 10⁸ Ω
Pollution degree 3
Transmission rate CAT 5
Overvoltage category II
Insulating material group II
EMC compliance shieldable
Shield connection Shielding plate
Voltage 250 V DC
Housing material CuZn (Brass nickel plated)
Contact body material LCP
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number a7438c75-a50a-4155-bd74-5cbe0fabb21a
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  4. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
