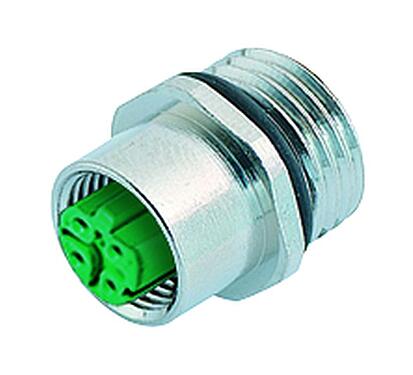

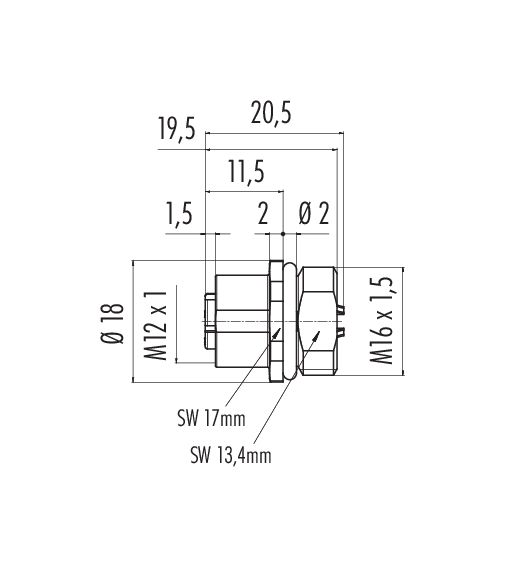

  4. M12 Female panel mount connector, Contacts: 4, solder, IP67, UL, M16x1.5
Part no.: 86 0236 0002 00404

M12 Female panel mount connector, Contacts: 4, solder, IP67, UL, M16x1.5

M12-D, series 876, Automation Technology - Data Transmission
Compare product
General features
Part no. 86 0236 0002 00404
Connector design Female panel mount connector
Type standard DIN EN 61076-2-101
Version Connector socket straight
Connector locking system screw
Termination solder
Degree of protection IP67
Cross-sectional area 0.14-0.25 mm² / AWG 22/AWG 24
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 9.37
Customs tariff number 85369010
Country of Origin DE
Rated voltage 250 V
Rated impulse voltage 2500 V
Rated current 2 A (0.14 mm²)/4 A
Insulation resistance ≤ 3 mΩ
Pollution degree 3
Overvoltage category II
Insulating material group II
Housing material Zinc die-cast nickel-plated
Contact body material PA66 (UL94 V0)
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 87915a0c-ae38-4bd3-a592-1645b9aa024f
ETIM 9.0 EC003569
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
