  2. Automation technology - Data transmission
  3. M12-D

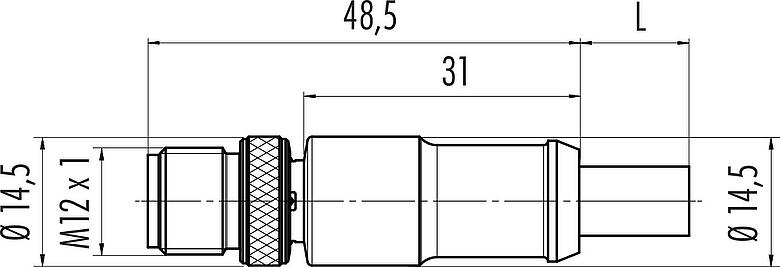

  4. M12 Male cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 2 m
Part no.: 77 4529 0000 50704-0200

M12 Male cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 2 m

M12-D, series 876, Automation Technology - Data Transmission
(Standard 2 m and 5 m. Other lengths are available on request.)
Compare product
Downloads
General features
Moreless
Part no. 77 4529 0000 50704-0200
Connector design Male cable connector
Type standard DIN EN 61076-2-101
Cable length 2 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version Connector pin straight
Connector locking system screw
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area 1 x 4 x AWG 22
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 138.00
Customs tariff number 85444290
Country of Origin DE
Rated voltage 250 V
Rated impulse voltage 2500 V
Rated current 4.0 A
Insulation resistance > 1010 Ω
Pollution degree 3
Transmission rate CAT 5
Overvoltage category II
Insulating material group I
EMC compliance shielded
Shield connection Shield on the threaded ring
Housing material PUR
Contact body material PUR
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material Zinc die-cast nickel-plated
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 5071ff00-92e3-4070-8a9d-1d6fa29cc03e
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002638
Low Voltage Directive 2014/35/EU (EN 60529:1991;EN 60204-1:2018)
RoHS Directive 2011/65/EU (EN 50581:2012)
Cable data
Moreless
Structure of the cable
Cable type Profinet/Ethernet CAT5e
Cable diameter 6.7 mm
Cross section 4 x AWG 22
Sheath material PUR
Single-lead insulation Polyolefin
Single-lead structure AWG 22/7
Cable color green
Electrical properties
Conductor resistance 55 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable ≥ 5 x Ø
Bending radius, moving cable ≥ 15 x Ø
Bending cycles 2 million
Permitted acceleration max. 2 m/s²
Travel distance, horizontal at 5 m/s² -> 5 m
Travel distance, vertical at 5 m/s² -> 5 m
Travel speed ≤ 200 m/min (5 m horizontal distance)
Thermal properties
Temperature range cable in move from/to -20 °C / 60 °C
Temperature range cable fixed from/to -40 °C / 80 °C
Other features
Halogen free yes
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  4. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
