General features
Moreless| Part no. | 08 0045 000 001 |

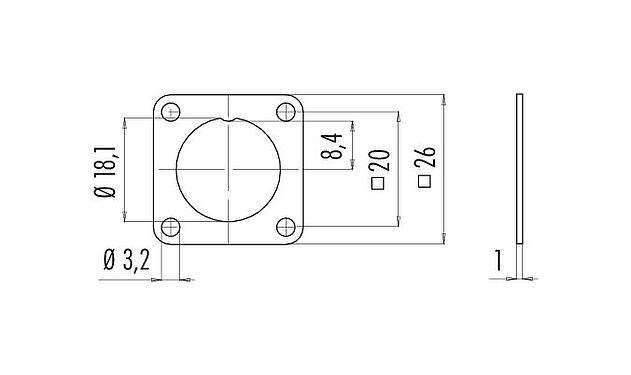

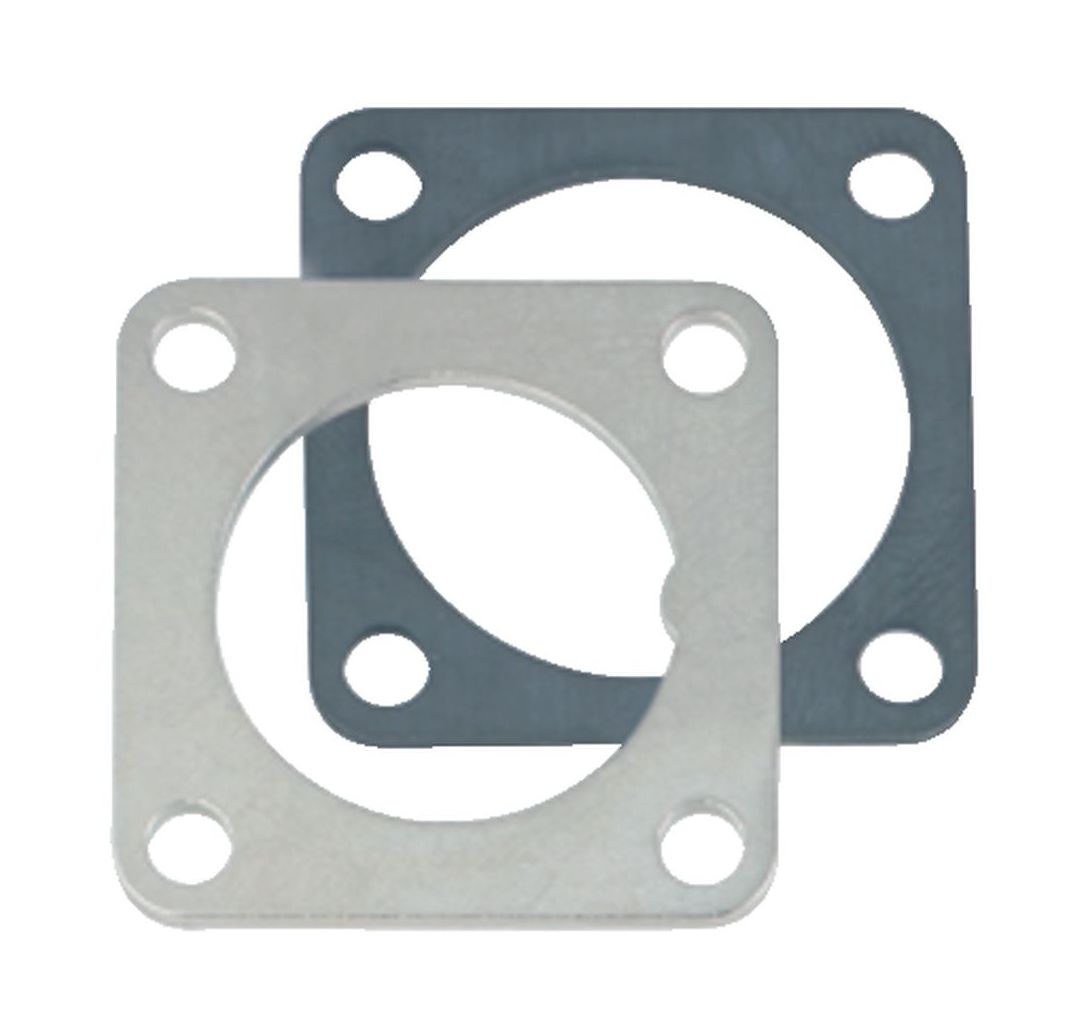

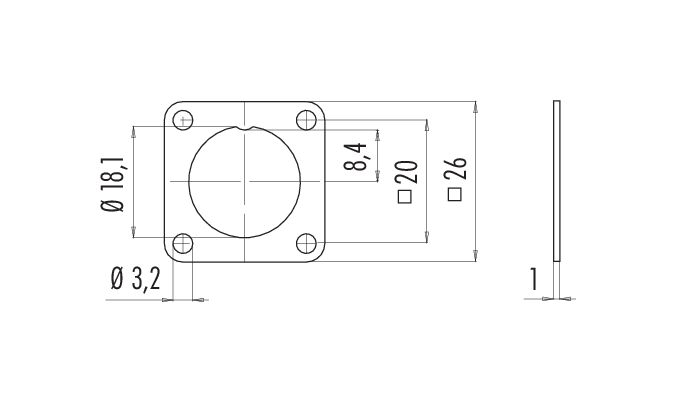

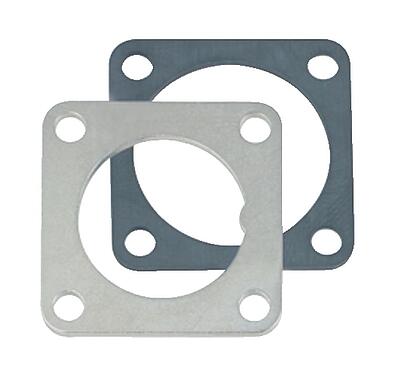

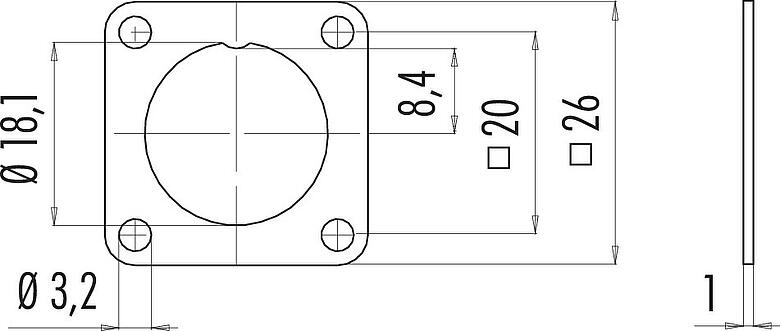

| Connector design | Square flange |
| Degree of protection | IP67 |
| Weight (g) | 3.59 |
| Customs tariff number | 85366990 |
| Country of Origin | DE |
Material
Moreless| REACH SVHC |
None (No pollutants) |
| SCIP number | SCIP-number not available |
Classifications
Moreless| eCl@ss 11.1 | 27-44-02-08 |
| ETIM 9.0 | EC002314 |
Security notices
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
