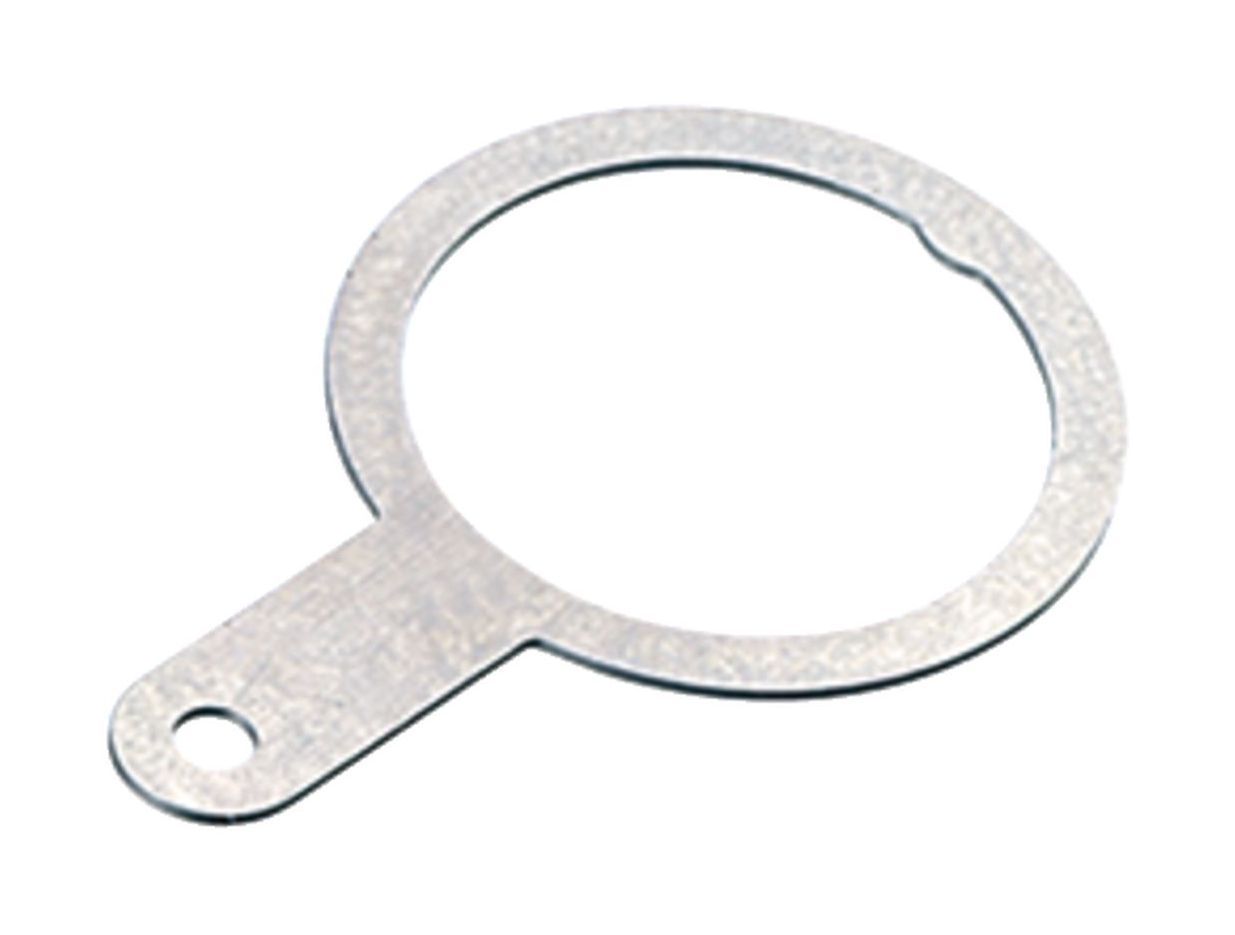

  4. M9 IP67 - Solder ring; Series 702/712
Part no.: 04 0208 002

M9 IP67 - Solder ring; Series 702/712

series 702/712, Accessories
Compare product
General features
Part no. 04 0208 002
Additional information Circuit board
Weight (g) 0.21
Customs tariff number 74092900
Country of Origin DE
Shield connection Solder lug
REACH SVHC None (No pollutants)
SCIP number None (No pollutants)
Surface DIN 50968 - Cu/Ni2 halbmatt
Material CuZn37F54
eCl@ss 11.1 27-44-01-92
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
