  4. M16 IP40 - solder ring; 581/680/682 series
Part no.: 04 0183 009

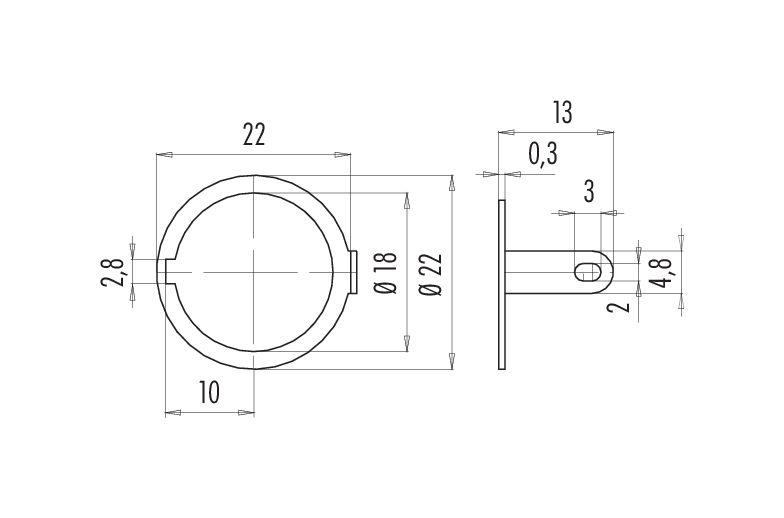

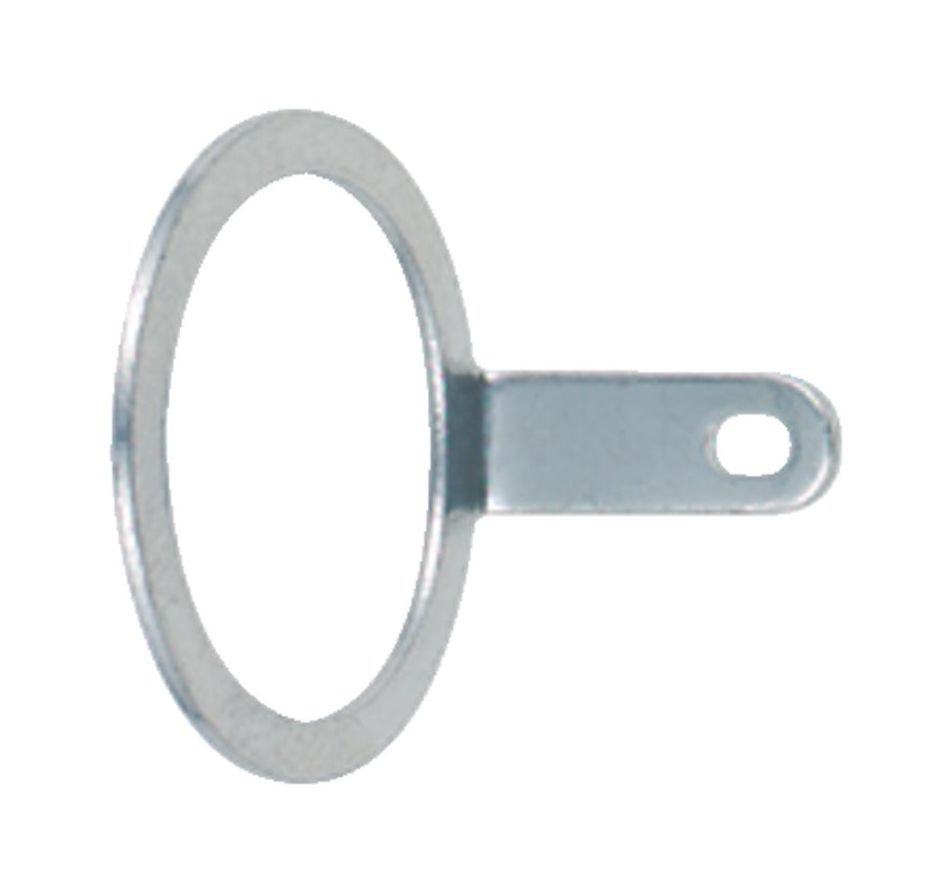

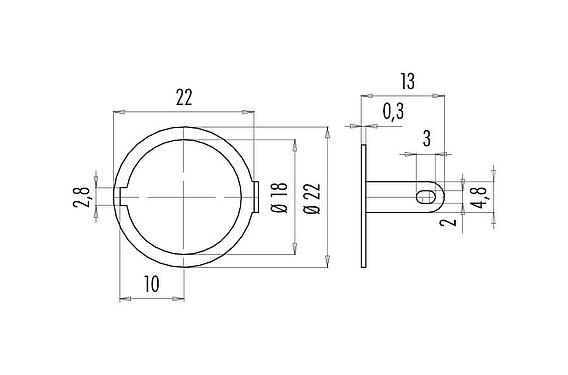

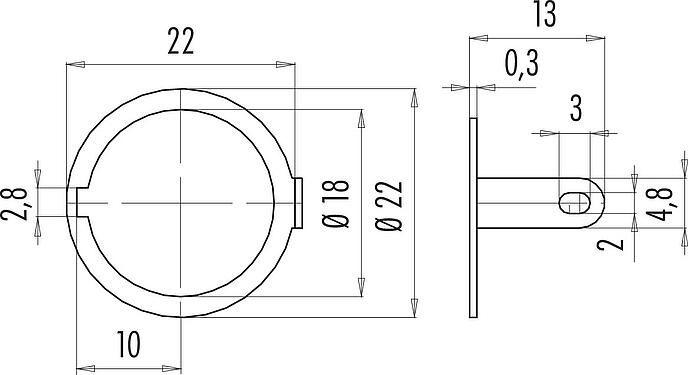

M16 IP40 - solder ring; 581/680/682 series

series 581/680/682, Accessories
Compare product
General features
Part no. 04 0183 009
Degree of protection IP40
Weight (g) 0.541
Customs tariff number 74092900
Country of Origin DE
Shield connection Solder lug
REACH SVHC None (No pollutants)
SCIP number None (No pollutants)
Surface IDN 50965-Cu/Cu2 Ni2 Sn5 glanz
Material CuZn37-F37
eCl@ss 11.1 27-44-01-92
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
