Part no.: 02 0055 001

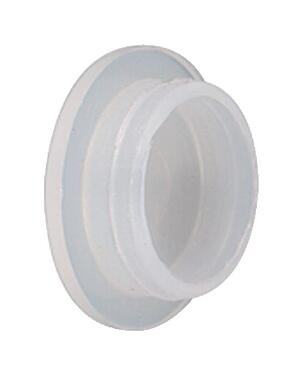

M16 IP40 - Protection cap for cable/flange socket; 581/680/682 series

series 581/680/682, Accessories
Compare product
Downloads
General features
Moreless
Part no. 02 0055 001
Degree of protection IP40
Temperature range -40 °C/+85 °C
Additional information for female panel mount connector
Weight (g) 0.628
Customs tariff number 39269097
Country of Origin DE
Contact body material natural
Material protective cap Polyethylene
REACH SVHC Keine (No pollutants)
eCl@ss 11.1 27-44-02-08
ETIM 9.0 EC002314
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
