  4. M8 / AS-Interface - Mounting nut M8x0.5; Series 718/772/775/768
Part no.: 01 0769 001

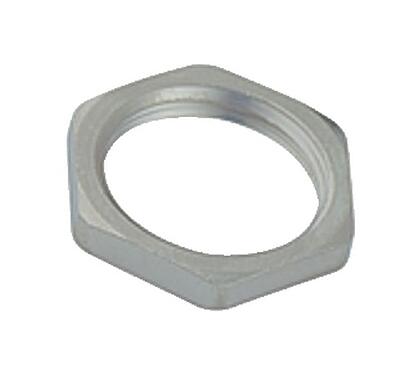

M8 / AS-Interface - Mounting nut M8x0.5; Series 718/772/775/768

series 718/772/775/768, Accessories
Compare product
General features
Part no. 01 0769 001
Thread M8x0.5
Width across flat SW 10
Weight (g) 0.65
Customs tariff number 85389099
Country of Origin DE
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 49a89df8-0155-4d35-8b68-4f53f9b09298
Surface DIN 50968-Cu/Ni4 halbmatt
Material CuZn39 Pb3 F50
eCl@ss 11.1 27-44-01-92
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
