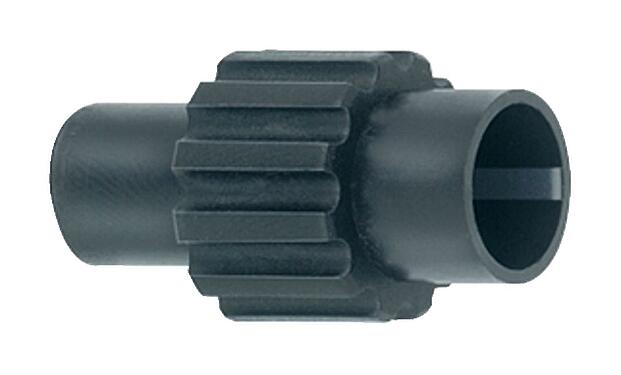

  4. M16 IP40 / M16 IP67 - mounting key for cable connectors; series 423/425/581/680/682/723
Part no.: 02 1785 000

M16 IP40 / M16 IP67 - mounting key for cable connectors; series 423/425/581/680/682/723

series 423/425/581/680/682/723, Accessories
Compare product
General features
Part no. 02 1785 000
Weight (g) 4.763
Customs tariff number 39269097
Country of Origin DE
REACH SVHC None (No pollutants)
SCIP number None (No pollutants)
Material Ultramid A3X2G5 schwarz - PA66 - GF25
eCl@ss 11.1 27-44-02-08
ETIM 9.0 EC002314
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  7. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
