  4. M8 / AS-Interface - Dummy screw fitting M10 x 0.75; Series 718/772/775/768
Part no.: 08 3130 000 000

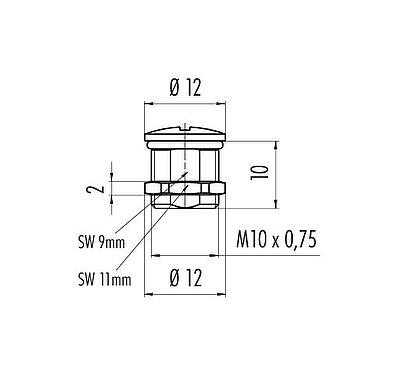

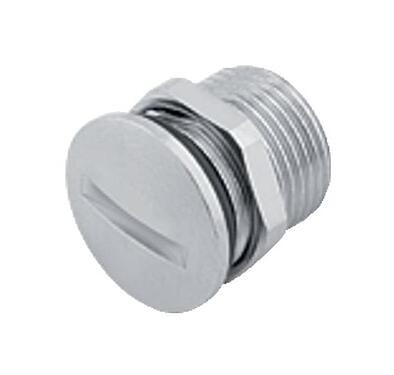

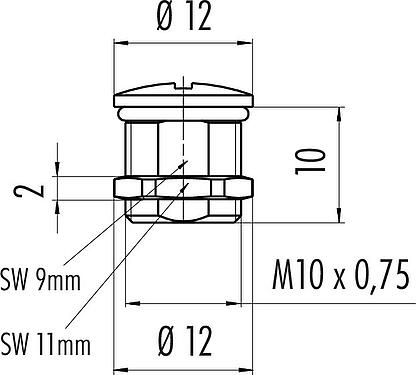

M8 / AS-Interface - Dummy screw fitting M10 x 0.75; Series 718/772/775/768

series 718/772/775/768, Accessories
Compare product
General features
Part no. 08 3130 000 000
Degree of protection IP67
Thread M10x0.75
Temperature range -40 °C/+85 °C
Additional information alternatively with surface as anti-twist protection
Weight (g) 7.53
Customs tariff number 85366990
Country of Origin DE
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number d9dafeda-ab30-4886-8932-f6970ccf4ac9
Material CuZn-Ni
eCl@ss 11.1 27-44-02-08
ETIM 9.0 EC002314
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
08 3130 000 000
