Power connectors
Bayonet HEC Power
Bayonet Female panel mount connector, Contacts: 4+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL 2238, VDE, Front mounting, UV resistant

示意图（可能有所不同） Bayonet Female panel mount connector, Contacts: 4+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL 2238, VDE, Front mounting, UV resistant — 示意图（可能有所不同）

3D视图 Bayonet Female panel mount connector, Contacts: 4+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL 2238, VDE, Front mounting, UV resistant — 3D视图

组件图纸 Bayonet Female panel mount connector, Contacts: 4+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL 2238, VDE, Front mounting, UV resistant — 组件图纸

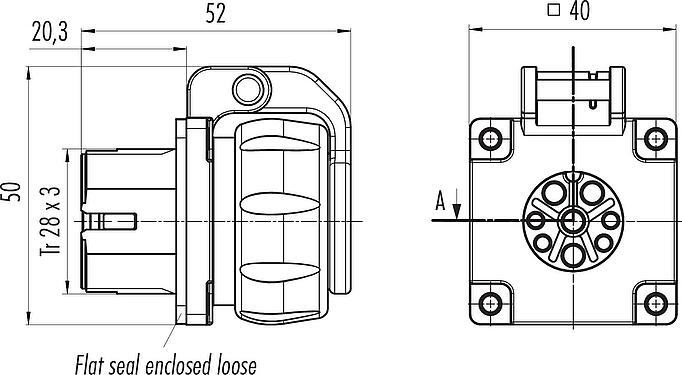

比例图 Bayonet Female panel mount connector, Contacts: 4+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL 2238, VDE, Front mounting, UV resistant — 比例图

装配说明 Bayonet Female panel mount connector, Contacts: 4+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL 2238, VDE, Front mounting, UV resistant — 装配说明

安装说明 Bayonet Female panel mount connector, Contacts: 4+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL 2238, VDE, Front mounting, UV resistant — 安装说明

联系安排 (外掛程式側) Bayonet Female panel mount connector, Contacts: 4+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL 2238, VDE, Front mounting, UV resistant — 联系安排 (外掛程式側)

安装方向 Bayonet Female panel mount connector, Contacts: 4+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL 2238, VDE, Front mounting, UV resistant — 安装方向

型号	09 6492 200 05
连接器样式	Female panel mount connector
版本	Connector socket straight
连接器锁定装置	Bayonet
接线方式	crimping (Crimp contacts must be ordered separately)
防护等级	IP68/IP69K
连接截面	2.50-6.00 mm² / AWG 14-10
工作温度	-40 °C / 100 °C
插拨次数	> 1000 Mating cycles
重量 (gr)	50.26
客户关税号	85369010
原产国	DE

额定电压	600 V
额定冲击电压	6000 V
额定电流	32.0 A
绝缘电阻	> 10⁸ Ω
污染等级	3
过压类别	III
材料组	I
EMV合规性	unshielded

外壳材料	PA
接触体材料	PA
接触面	depending on crimp contact (accessory)
REACH SVHC	None (No pollutants)
存在 PFAS	SCIP-number not available

批准书	UL 2238, VDE

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569
