Bayonet HEC Power connector
Bayonet connectors HEC

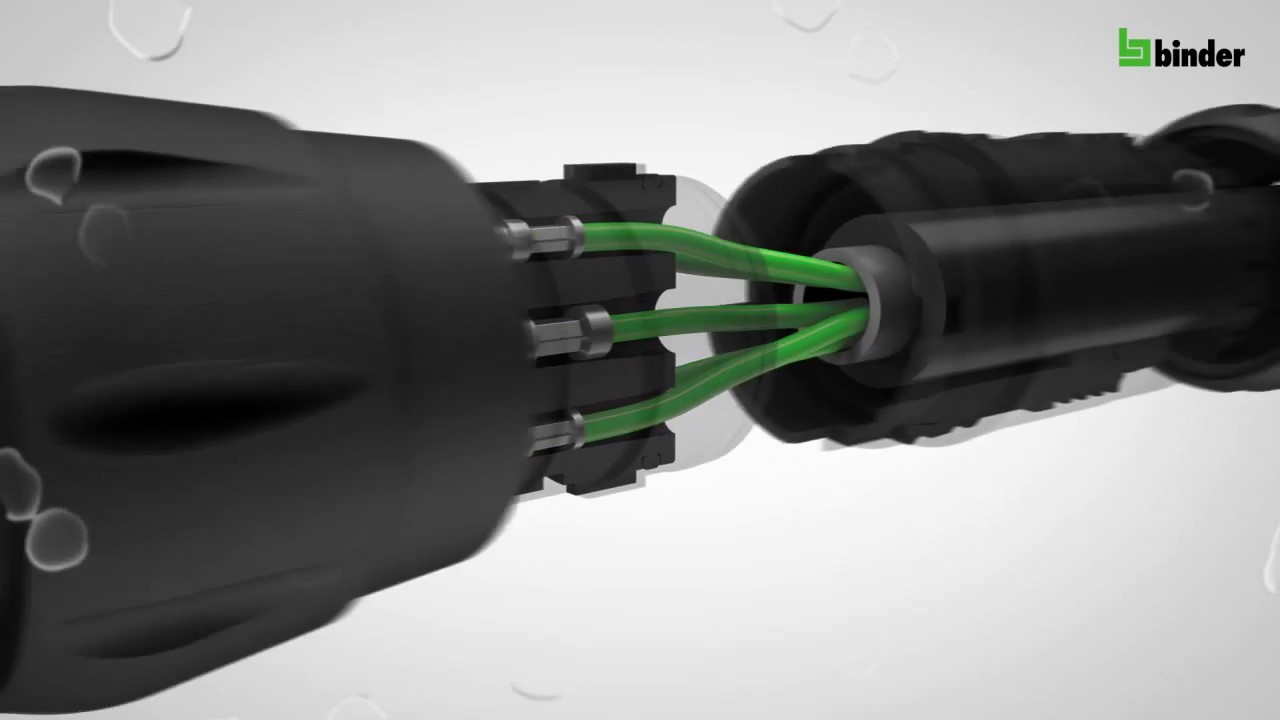

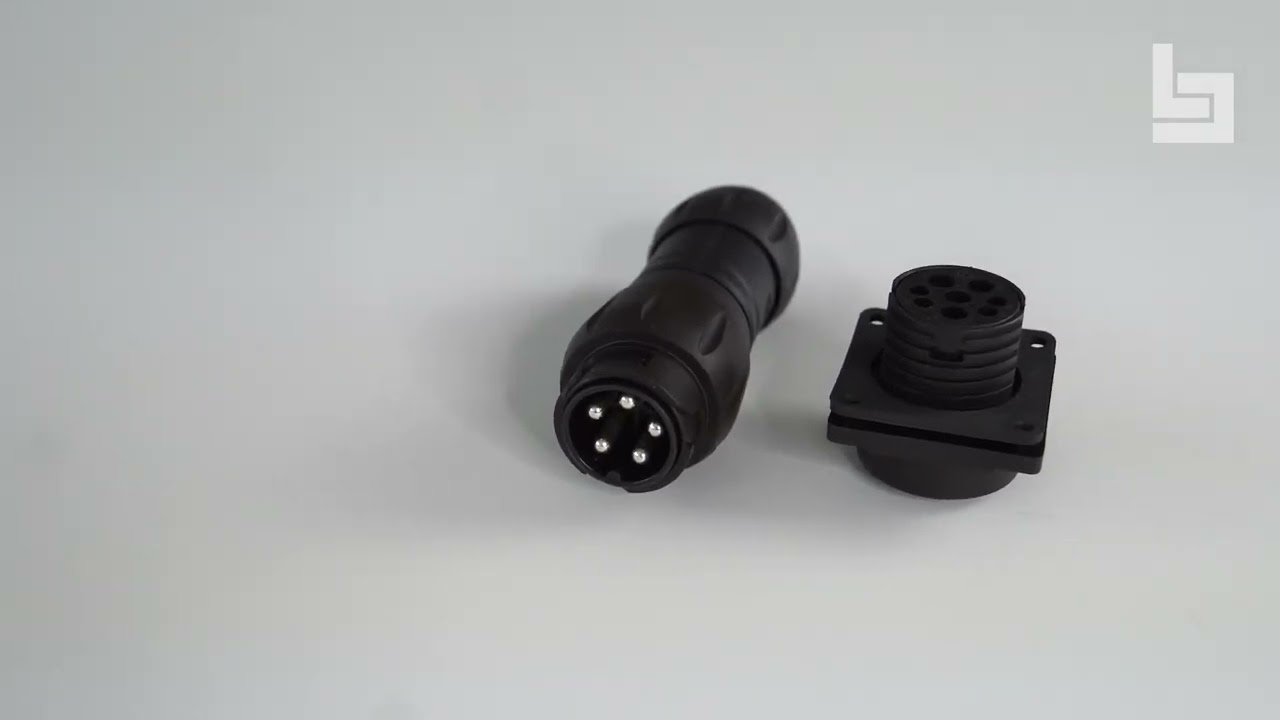

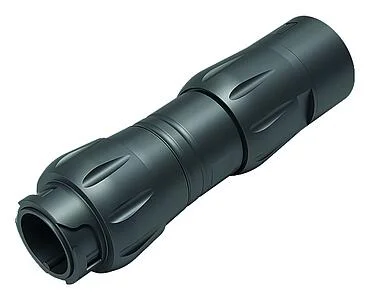

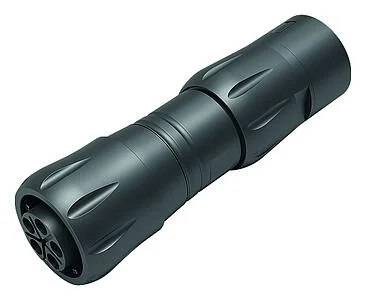

The HEC Power bayonet connectors of series 696 from binder are specifically designed for demanding industrial applications in harsh environments. Available in square flange and cable versions, these connectors feature an integrated protective sleeve that reliably protects the cables to IP69K when mated and to IP67 when unmated. The products are UV-resistant and hold both VDE and UL approvals, underlining their high quality and global applicability.

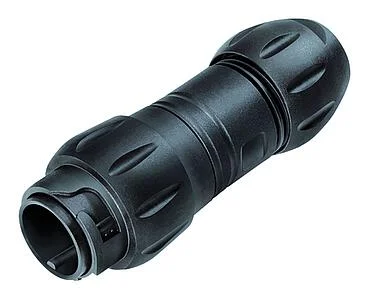

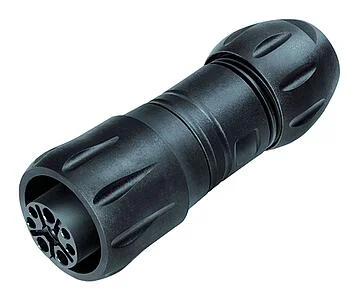

A key feature of these power connectors is the robust bayonet locking system, which ensures secure and easy installation. The cable connectors with bayonet locking offer high mechanical durability: the 12-pin version withstands more than 500 mating cycles, while the 5- and 8-pin variants withstand more than 1000 mating cycles.
Thanks to the high protection rating IP68/IP69K, UV resistance and durable construction, the HEC Power bayonet connectors of Series 696 are a reliable solution for applications requiring maximum protection and mechanical resilience.
