型号	76 6218 1111 00008-0200 备选部件号: 09 3426 00 08
概述	Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right. 更多
连接器样式	Female panel mount connector
Type standard	DIN EN 61076-2-104
编码	A-coded
线长	0.2 m (Standard 0.2 m. Other lengths are available on request).
版本	Connector socket straight
连接器锁定装置	screw
接线方式	single wires
防护等级	IP67
连接截面	0.14 mm² / AWG 26
工作温度	-40 °C / 85 °C
插拨次数	> 100 Mating cycles
重量 (gr)	9.88
客户关税号	85369010
原产国	DE

导线结构
横截面积 (mm²)	8 x 0.14 mm²
横截面积 (AWG)	8 x AWG 26
线径	1,3 mm
线色	white brown green yellow pink blue red grey
护套材料	PVC
线材材料	Cu (tinned)
导线结构	7 x 0.16 mm
电气性能
额定电压	300 V
额定冲击电压	3000 V
导线电阻	135 Ω/Km (20°C)
绝缘电阻	20.0 MΩ/Km (20 °C)
热性能
温度范围线在移动从/到（°C)	-10 °C / 105 °C
温度范围线固定值从/至（°C)	-30 °C / 105 °C

eCl@ss 11.1	27-44-01-03
ETIM 9.0	EC003570

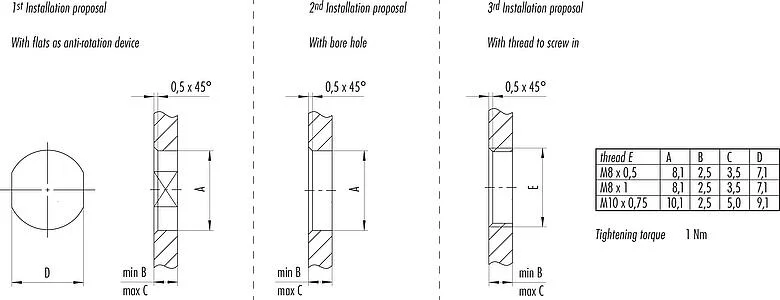

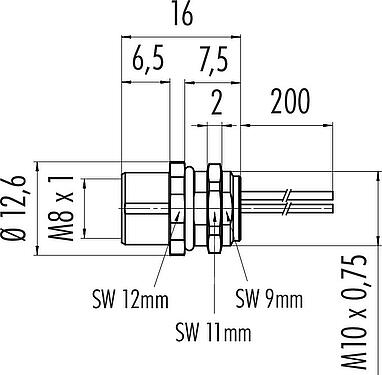

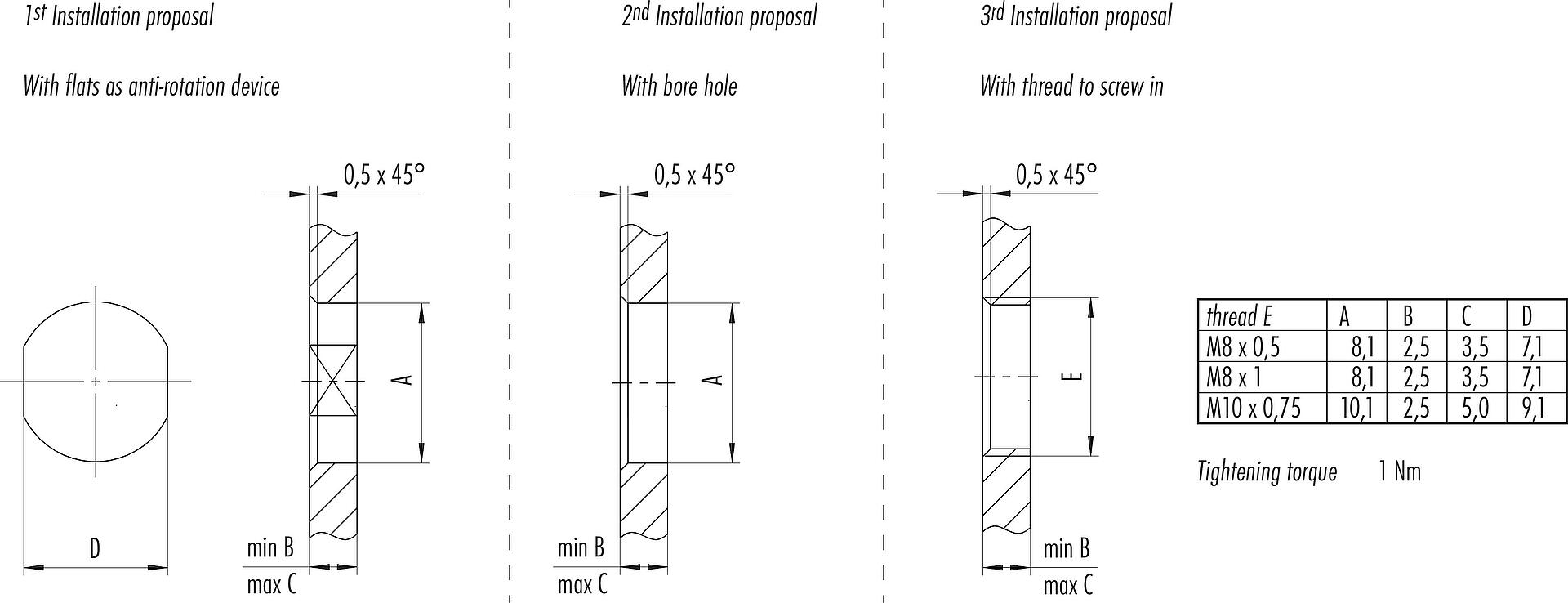

M8 Female panel mount connector, Contacts: 8, unshielded, single wires, IP67, UL 2238, M10x0.75, Front mounting, potted

M8, series 718, Automation Technology - Sensors and Actuators
