M16 Female panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened

Illustration 09 0328 65 07 - M16 Female panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened — Illustration

3D View 09 0328 65 07 - M16 Female panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened — 3D View

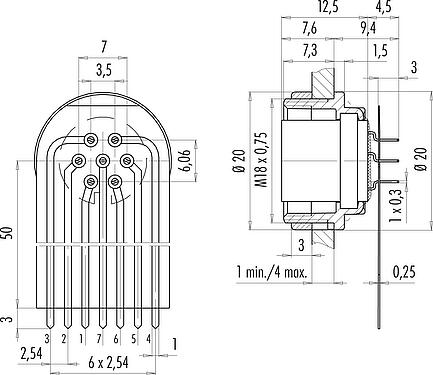

Connection & dimensions 09 0328 65 07 - M16 Female panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened — Connection & dimensions

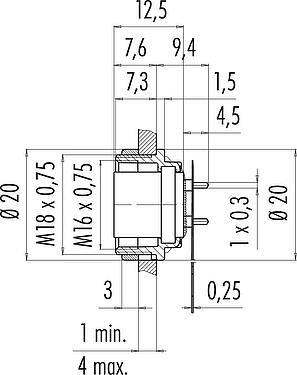

Scale drawing 09 0328 65 07 - M16 Female panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened — Scale drawing

Assembly instructions / Panel cut-out 09 0328 65 07 - M16 Female panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 09 0328 65 07 - M16 Female panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened — Contact arrangement (Plug-in side)

Part no.	09 0328 65 07
Connector design	Female panel mount connector
Type standard	DIN EN 61076-2-106
Version	Connector socket straight
Connector locking system	screw
Termination	THT
Degree of protection	IP40
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	10.45
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	125 V
Rated impulse voltage	800 V
Rated current	5.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	I
Insulating material group	III
EMC compliance	unshielded

Housing material	Zinc die-cast nickel-plated
Contact body material	PBT (UL94 V-0)
Contact material	CuSn (bronze)
Contact plating	Ag (silver)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	e6df4a8c-7f3c-4561-9e80-eb877559aeb5

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569
