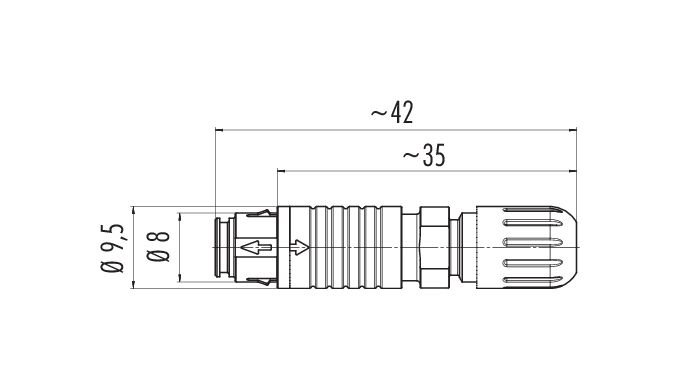

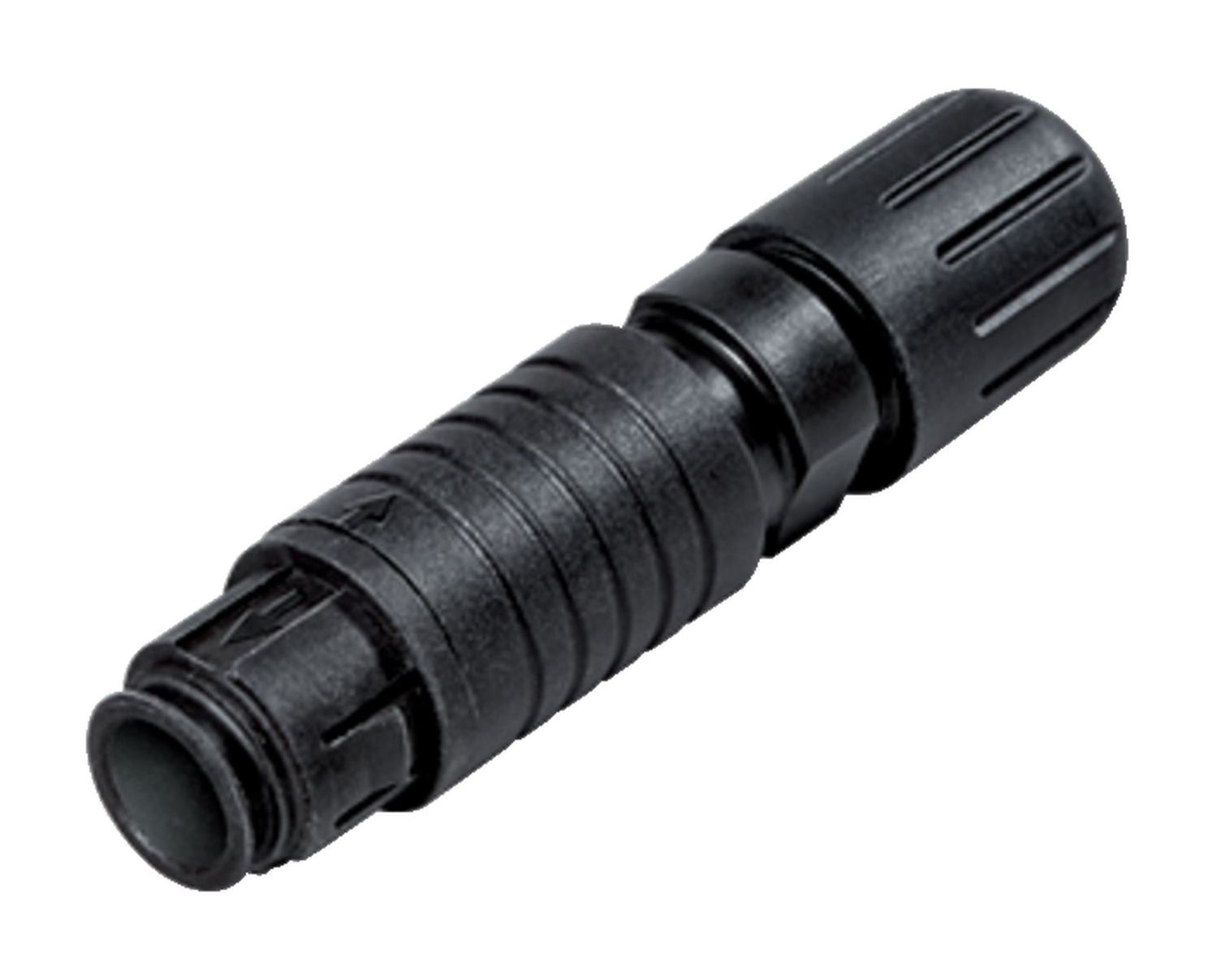

  4. Male cable connector, Contacts: 5, 3.0-4.0 mm, unshielded, solder, IP67
Part no.: 99 4713 00 05

Male cable connector, Contacts: 5, 3.0-4.0 mm, unshielded, solder, IP67

Push Pull, series 420, Subminiature Connectors

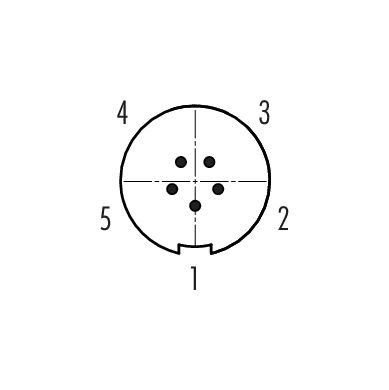

Available numbers of contacts
Compare product
General features
Part no. 99 4713 00 05
Connector design Male cable connector
Version Connector pin straight
Connector locking system Micro Push-Pull
Termination solder
Degree of protection IP67
Cross-sectional area max. 0.14 mm² / AWG 26
Cable outlet 3.0-4.0 mm
Temperature range from/to -40 °C / 80 °C
Mechanical operation > 1000 Mating cycles
Weight (g) 2.81
Customs tariff number 85369010
Rated voltage 125 V
Rated impulse voltage 1500 V
Rated current (40 °C) 1.0 A
Pollution degree 2
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Housing material PA
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 96-45-7 (Imidazolidine-2-thione)
CAS 7439-92-1 (Lead)
SCIP number 9afe691d-afe6-46a0-bc08-d8a196a5428b
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
